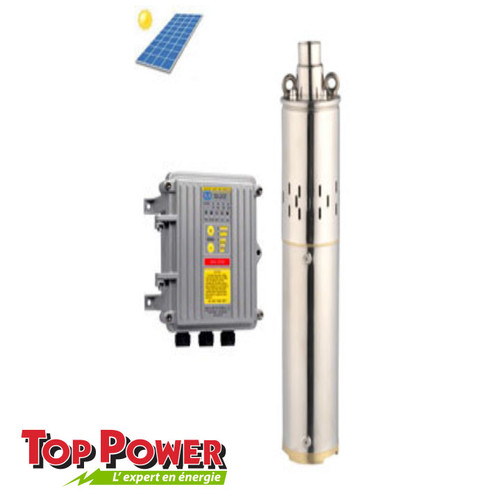

Submersible Deep Well Pump NASS #8

YOU CAN RUN DIRECT FROM BATTERY OR SOLAR PANEL

•  If your voltage battery voltage is lower use step up converter

NASS # 4 V2   1.3-50 Heli coil

• Maximum Lift         50 m (164 Ft)
• Maximum Flow       21 L/Pm (5.7 Gal)
• Outlet Size               3/4"
• Pump spec    24 Volt, 110 Watt
• Minimum Panel 230 Watt
• Maximum Panel 750 Watt
• Maximum open voltage 63 Volt DC
• Pump Diameter 3"
• Solar, Battery or a combine

 NASS # 6 V2  1.8-60 Heli coil

• Maximum Lift         60m (196 Ft)
• Maximum Flow       30L/Pm (7.9 Gal)
• Outlet Size               3/4"
• Pump spec    24 Volt, 180 Watt
• Minimum Panel 250 Watt
• Maximum Panel 750 Watt
• Maximum open voltage 63 Volt DC
• Pump Diameter 3"
• Solar, Battery or a combine

 NASS # 8 V2   2.1-120S Heli coil

• Maximum Lift         120m (393 Ft)
• Maximum Flow       35 L/Pm (9.2 Gal)
• Outlet Size               3/4"
• Pump spec     48 Volt, 540 Watt

• Minimum Panel 750 Watt
• Maximum Panel 1,500 Watt
• Maximum open voltage 100 Volt DC
• Pump Diameter 3"
• Solar, Battery or a combine

NASS # 10 V2 3.6-138 Centrifuge

• Maximum Lift         138 m (446 Ft)
• Maximum Flow       60 L/Pm (15.8 Gal)
• Outlet Size               1.5"
• Pump Spec    72 Volt, 950 Watt
• Minimum Panel 1,400 Watt
• Maximum Panel 1,800 Watt
• Maximum open voltage 150 DC
• Pump Diameter 4"
• Solar, Battery or a combine

 NASS # 12 V2            5.0-128 Centrifuge

• Maximum Lift         128 m (419 Ft)
• Maximum Flow       83 L/Pm (21.9 Gal)
• Outlet Size               1.5"
• Nominal Voltage     72 Volt, 1200 Watt
• Minimum Panel 1,400 Watt
• Maximum Panel 1,800 Watt
• Maximum open voltage 150 DC
• Pump Diameter 4"
• Solar, Battery or a combine

 NASS # 14 V2            23-21 Centrifuge

• Maximum Lift         21 m (68 Ft)
• Maximum Flow       383 L/Pm (100.8 Gal)
• Outlet Size               3.0"
• Pump spec Nominal Voltage 72 Volt, 1200 Watt
• Minimum Panel 1400 Watt
• Maximum Panel 1,800 Watt
• Maximum open voltage 150 DC
• Pump Diameter 4"
• Solar, Battery or a combine

    Solar Pump Features:

• NASS 4-6-8 Fit 4" Wells diameter, NASS 10-12-14 Fit 6” Well diameter
• Helical or Centrifuge rotor design for high head, high pressure
• Does not require an inverter, direct PV Panel connections
• Nass #4 & 6 Battery 24 Volt input for extended operation (24-63V)
• Nass #8 Battery 48 Volt input for extended operations (48-100V)
• Nass #10 Battery 72 Volt input for extended operations (72-150V)
• Nass #12 Battery 72 Volt input for extended operations (72-150V)
• Nass #14 Battery 72 Volt input for extended operations (72-150V)
• Dry Run protection through application of water level sensor or float
• Low power, over voltage, over current protections
• LED Power, Running, Well & Tank
• On/Off Switch on front display
• Speed control on front of display
• Extra heat fins on control box to prevent overheating
• Cable retrains included
• Water resistant control box
• One free worm wheel, NASS 4-6-8 complete assembly
• 3 year limited warranty (Customer Installation Sheet to be submitted)

Package includes:

•  NASS #4, #6, #8 3" Diameter, stainless steel solar pump and motor w/ 6 ft. lead
•  NASS #10,12,14 4" Diameter, stainless steel solar pump and motor w/ 6 ft. lead
• 1 x well water level sensor
• 2 x water level probes for automatic pumping
• Heat shrink kit for watertight connection
• User's manual
• 3 year warranty (Installation Sheet to be send for coverage)

Pump Specifications:

o   Max head:  From 68 To 446 feet (21 to 138 meters) (See specifications)

o    2 Closed lifting hooks

o   Stainless Steel 304 Food Grade

Auto control box specifications:

• ·         Fully automatic pumping mode through the use of either or both water level sensors in well and in storage tank
• ·         Bypass sensors for application, does not require water level monitoring
• ·         Timer  for low-yield-well to recover in automatic mode
• ·         Low power, over voltage and over current protections
• ·         Dry run protection in automatic mode with sensors connected
• ·         24V input, allow up to 63Voc (solar panel open circuit)
• ·         48V input, allow up to 100Voc (solar panel open circuit)
• ·         72V input, allow up to 150Voc (solar panel open circuit)
• ·         On/Off switch operator friendly adjustable
• ·         Electrical board double insulated coated with stainless steel screws
• ·         Complete monitoring display on front panel, speed and all sensors
• ·         Adjustable speed control outside controller box
• ·         Wire restraints included

Recommended & Maximum Solar Panel Wattage (NOT included):

o  NASS #4:     230 to maximum 750 Watt

o  NASS #6:     250 to maximum 750 Watt

o  NASS #8:     750 to maximum 1,500 Watt

o  NASS #10: 1,400 to maximum 1,800 Watt

o  NASS #12: 1,680 to maximum 1,800 Watt

o  NASS #14: 1,400 to maximum 1,800 Watt
