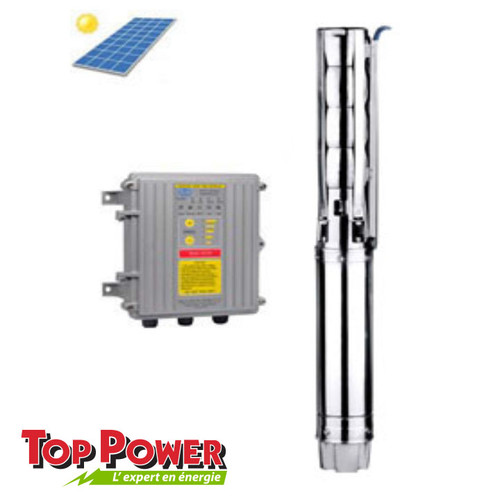

Submersible Deep Well Pump NASS #10

(No reviews yet) Write a Review

Contact us at +509 3191 0553

  • Submersible Deep Well Pump NASS #10

YOU CAN RUN DIRECT FROM BATTERY OR SOLAR PANEL

  •  If your voltage battery voltage is lower use step up converter

NASS # 4 V2   1.3-50 Heli coil

  • Maximum Lift         50 m (164 Ft)
  • Maximum Flow       21 L/Pm (5.7 Gal)
  • Outlet Size               3/4"
  • Pump spec    24 Volt, 110 Watt
  • Minimum Panel 230 Watt
  • Maximum Panel 750 Watt
  • Maximum open voltage 63 Volt DC
  • Pump Diameter 3"
  • Solar, Battery or a combine

 NASS # 6 V2  1.8-60 Heli coil

  • Maximum Lift         60m (196 Ft)
  • Maximum Flow       30L/Pm (7.9 Gal)
  • Outlet Size               3/4"
  • Pump spec    24 Volt, 180 Watt
  • Minimum Panel 250 Watt
  • Maximum Panel 750 Watt
  • Maximum open voltage 63 Volt DC
  • Pump Diameter 3"
  • Solar, Battery or a combine

 NASS # 8 V2   2.1-120S Heli coil

  • Maximum Lift         120m (393 Ft)
  • Maximum Flow       35 L/Pm (9.2 Gal)
  • Outlet Size               3/4"
  • Pump spec     48 Volt, 540 Watt
  • Minimum Panel 750 Watt
  • Maximum Panel 1,500 Watt
  • Maximum open voltage 100 Volt DC
  • Pump Diameter 3"
  • Solar, Battery or a combine

NASS # 10 V2 3.6-138 Centrifuge

  • Maximum Lift         138 m (446 Ft)
  • Maximum Flow       60 L/Pm (15.8 Gal)
  • Outlet Size               1.5"
  • Pump Spec    72 Volt, 950 Watt
  • Minimum Panel 1,400 Watt
  • Maximum Panel 1,800 Watt
  • Maximum open voltage 150 DC
  • Pump Diameter 4"
  • Solar, Battery or a combine

 NASS # 12 V2            5.0-128 Centrifuge

  • Maximum Lift         128 m (419 Ft)
  • Maximum Flow       83 L/Pm (21.9 Gal)
  • Outlet Size               1.5"
  • Nominal Voltage     72 Volt, 1200 Watt
  • Minimum Panel 1,400 Watt
  • Maximum Panel 1,800 Watt
  • Maximum open voltage 150 DC
  • Pump Diameter 4"
  • Solar, Battery or a combine

 NASS # 14 V2            23-21 Centrifuge

  • Maximum Lift         21 m (68 Ft)
  • Maximum Flow       383 L/Pm (100.8 Gal)
  • Outlet Size               3.0"
  • Pump spec Nominal Voltage 72 Volt, 1200 Watt
  • Minimum Panel 1400 Watt
  • Maximum Panel 1,800 Watt
  • Maximum open voltage 150 DC
  • Pump Diameter 4"
  • Solar, Battery or a combine



    Solar Pump Features:

  • NASS 4-6-8 Fit 4" Wells diameter, NASS 10-12-14 Fit 6” Well diameter
  • Helical or Centrifuge rotor design for high head, high pressure
  • Does not require an inverter, direct PV Panel connections
  • Nass #4 & 6 Battery 24 Volt input for extended operation (24-63V)
  • Nass #8 Battery 48 Volt input for extended operations (48-100V)
  • Nass #10 Battery 72 Volt input for extended operations (72-150V)
  • Nass #12 Battery 72 Volt input for extended operations (72-150V)
  • Nass #14 Battery 72 Volt input for extended operations (72-150V)
  • Dry Run protection through application of water level sensor or float
  • Low power, over voltage, over current protections
  • LED Power, Running, Well & Tank
  • On/Off Switch on front display
  • Speed control on front of display
  • Extra heat fins on control box to prevent overheating
  • Cable retrains included
  • Water resistant control box
  • One free worm wheel, NASS 4-6-8 complete assembly
  • 3 year limited warranty (Customer Installation Sheet to be submitted)

Package includes:

  •  NASS #4, #6, #8 3" Diameter, stainless steel solar pump and motor w/ 6 ft. lead
  •  NASS #10,12,14 4" Diameter, stainless steel solar pump and motor w/ 6 ft. lead
  • 1 x well water level sensor
  • 2 x water level probes for automatic pumping
  • Heat shrink kit for watertight connection
  • User's manual
  • 3 year warranty (Installation Sheet to be send for coverage)



Pump Specifications:

o   Max head:  From 68 To 446 feet (21 to 138 meters) (See specifications)

o    2 Closed lifting hooks

o   Stainless Steel 304 Food Grade



Auto control box specifications:

  • ·         Fully automatic pumping mode through the use of either or both water level sensors in well and in storage tank
  • ·         Bypass sensors for application, does not require water level monitoring
  • ·         Timer  for low-yield-well to recover in automatic mode
  • ·         Low power, over voltage and over current protections
  • ·         Dry run protection in automatic mode with sensors connected
  • ·         24V input, allow up to 63Voc (solar panel open circuit)
  • ·         48V input, allow up to 100Voc (solar panel open circuit)
  • ·         72V input, allow up to 150Voc (solar panel open circuit)
  • ·         On/Off switch operator friendly adjustable
  • ·         Electrical board double insulated coated with stainless steel screws
  • ·         Complete monitoring display on front panel, speed and all sensors
  • ·         Adjustable speed control outside controller box
  • ·         Wire restraints included



Recommended & Maximum Solar Panel Wattage (NOT included):

o  NASS #4:     230 to maximum 750 Watt

o  NASS #6:     250 to maximum 750 Watt

o  NASS #8:     750 to maximum 1,500 Watt

o  NASS #10: 1,400 to maximum 1,800 Watt

o  NASS #12: 1,680 to maximum 1,800 Watt

o  NASS #14: 1,400 to maximum 1,800 Watt
