Conext XW+ PDP Solar Power Distribution Panels

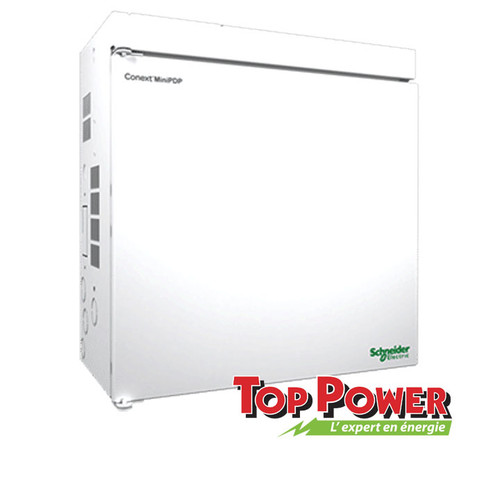

The ConextTM XW+ Power Distribution Panels (XW+ PDP and Mini PDP) are factory-wired and labeled to support the integration of multiple Conext XW+ inverter/chargers and Conext MPPT Solar Charge Controllers with a single battery bank. The XW+ PDP and Mini PDP ships with breakers, bus bars and cables to install a single XW+ inverter/charger. With space to add wiring and breakers, a single XW+ PDP and Mini PDP supports one XW+ inverter/charger, a diesel generator and either an MPPT 80 600 or MPPT 60 150 Solar Charge Controller. The XW+ PDP and Mini PDP support single-phase, split phase or three-phase installations. A field-reversible door and multiple conduit knockout entry points allow for the XW+ PDP and Mini PDP enclosure to be mounted and configured on either side of the inverter/charger.

Conext XW+ Power Distribution Panels help you save significant time and money during installation when compared to custom solutions. A mounting bracket and Conext XW+ Conduit Box are also supplied with each XW+ PDP and Mini PDP.

Attachment

• Conext-XW+-Conduit-Box-Install-975-0707-01-01_Rev-A_ENG.pdf
• Conext-XW+-Conduit-Box-Install-975-0707-02-01_Rev-A_FRE.pdf
• Conext-XW+-PDP-120-240V-60A-Breaker-Kit-975-0702-01-01_Rev-A_ENG.pdf
• Conext-XW+-PDP-120-240V-60A-Breaker-Kit-975-0702-02-01_Rev-A_FRE.pdf
• Conext-XW+-PDP-3-Phase-Breaker-Kit-975-0703-01-01_Rev-A_ENG.pdf
• Conext-XW+-PDP-3-Phase-Breaker-Kit-975-0703-02-01_Rev-A_FRE.pdf
• Conext-XW-Connection-Kit-For-INV2_INV3-PDP-Install-Guide-975-0708-01-01_Rev-B_ENG.pdf
• Conext-XW-Connection-Kit-For-INV2_INV3-PDP-Install-Guide-975-0708-02-01_Rev-B_FRE.pdf
• DS20171117_Conext-XW-PDP-Datasheet.pdf
• conext-xw-mini-pdp-install-guide-975-0735-01-01_rev-b_eng.pdf
• conext-xw-mini-pdp-install-guide-975-0735-02-01_rev-b_fre.pdf
• conext-xw-pdp-install-guide-975-0709-01-01_rev-c_eng.pdf
• conext-xw-pdp-install-guide-975-0709-02-01_rev-c_fre.pdf
