Xantrex makes DC input safety a simple matter with our complete line of DC disconnects and breakers. The high amperage DC breaker is housed within a powder coated enclosure with conduit knockouts for SW and DR series inverter connection. Our DC disconnects are simple to install and meet all electrical code requirements for appropriate circuit protection.
Features
As a DC Disconnect, this breaker provides an easy and convenient way to isolate the inverter and battery.
Meets the National Electric Code requirements for DC disconnect over-current protection.
Has no exposed hot terminals or removable parts that can be damaged or lost
Extremely low voltage drop – less than most fuses or current shunts
Easy to reset – makes troubleshooting a safe and inexpensive process

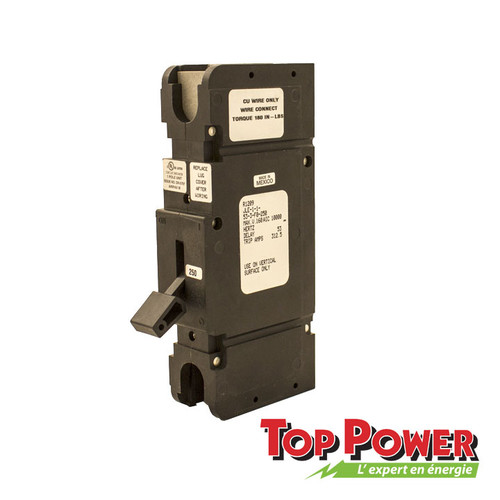

This is a panel mount breaker. It can be mounted to the back of a panel enclosure with the mounting feet. Recommended for use with Xantrex XW Charge Controllers or Xantrex inverters through the...
The Xantrex 100A, panel mount breaker is designed for use in the XW Power Distribution Panel. This breaker is typically used as the charge controller input breaker for the Xantrex 160A MPPT...
This is a panel mount breaker. It can be mounted to the back of a panel enclosure with the mounting feet. Recommended for use with Xantrex XW Charge Controllers or Xantrex inverters through the...
All MidNite circuit breakers can be used at 100% rated current when mounted in a MidNite enclosure.Breaker Torque Value: 15 Ft-Lbs (20.4NM)
Environmental Rating - Type 1 (Indoor)
125VDC Panel...
The ConextTM SW Power Distribution Panels are pre-wired out of the box and labeled to support the integration of Conext SW inverter/chargers with a Conext MPPT Solar Charge Controller, battery bank...
The Conext SW 120/240V AC Stacking Kit contains AC circuit breakers and parts for connecting an additional Conext SW inverter/charger. It allows you to combine the output of two Conext SW inverters...
