Steel Pipe Ground System Rack - 2x4 panels
Contact us at +509 3603 3046
Size Chart
- Brand
- ARTSIGN
- SKU:
- SPGS 2x4
- Weight:
- 20.00 LBS
4 Great reasons to buy from us:

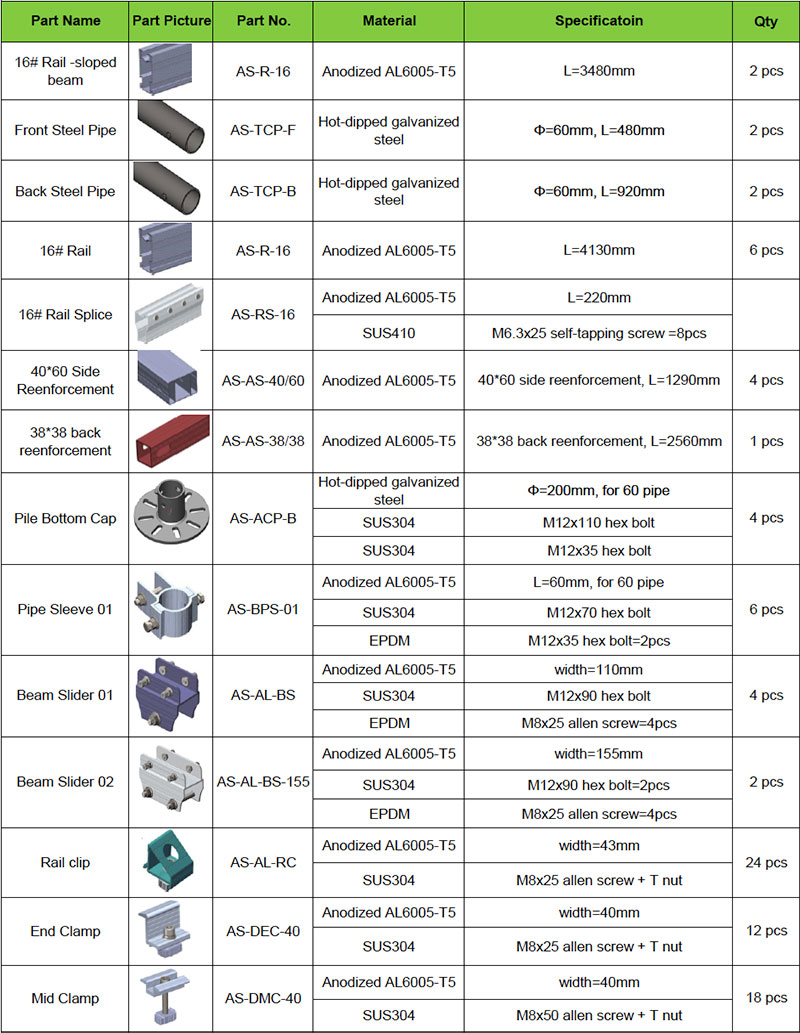

Steel Pipe Ground System Rack - 2x4 panels
- Solar Panel dimension 1960x992x40mm
- Wind load: 120mph
- Layout: 2x4 portrait
- Tilt angle: 10 degrees
- Height of front: 566mm
- Height of rear: 1247mm
- Application: Open Ground
0 Reviews Hide Reviews Show Reviews
Tile Roof Type Rack 1x4 panels
ARTSIGN
Tile Roof type - 1x4 panels
Solar panel dimension 1960x992x40mm
Wind load: 120mph
Application: Tile Roof
<
Flat Roof Type Rack 1x4 panels
ARTSIGN
Flat Roof type - 1x4 panels
Solar Panel dimension 1960x992x40mm
Wind load: 120mph
Application: Flat roof
Tilt angle: 12-35 degrees adjustable
Metal/Tin Roof type Rack - 1x4 panels
ARTSIGN
Design Drawing of Metal/Tin Roof System Rack - 4 Panels - 120mph
SCP - System Control Panel - Remote Schneider
Schneider
Conext System Control Panel
The ConextTM System Control Panel (SCP) eliminates the need for separate control panels for each device and gives a single point of control to set up and monitor the...
Breaker 250A 160Vdc Panel Mounted - Schneider
Schneider
Xantrex makes DC input safety a simple matter with our complete line of DC disconnects and breakers. The high amperage DC breaker is housed within a powder coated enclosure with conduit knockouts for...
Breaker 60A 160Vdc Panel Mounted - Schneider
Schneider
This is a panel mount breaker. It can be mounted to the back of a panel enclosure with the mounting feet. Recommended for use with Xantrex XW Charge Controllers or Xantrex inverters through the...
