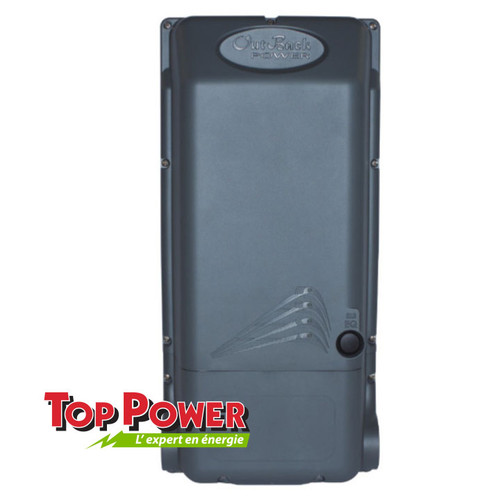

OUTBACK POWER FLEXMAX 100 AMP MPPT CHARGE CONTROLLER

The FLEXmax 100 is the latest innovation in Maximum Power Point Tracking (MPPT) charge controllers from OutBack Power.

The advanced FM100 MPPT algorithm offers increased energy harvest from the PV array than other MPPT controllers. The FLEXmax 100 delivers both higher voltage and higher power, offering improved flexibility and performance.

OutBack network communications and OPTICS RE compatibility allows the FLEXmax 100 to be remotely programmed, monitored and controlled via any internet connected device providing unrivaled system integration.

The FM100-300VDC is a top-of-the-line high performance, efficient and versatile charge controller for your advanced power system.

• 100A output for up to 5kW of charging

• Compatible with 24, 36 and 48VDC battery banks

• Integrated ground fault protection

• System configures quickly with smart programming wizards (MATE3s required)

• 300VDC open-circuit voltage limit enables 2-string configuration that minimizes BOS

FM100-300VDC Specifications:

Nominal battery system voltage: 24, 36, & 48 Volts DC
Charging range output: 20 - 68 Volts DC
Controller type: MPPT
Minimum battery bank size: 100 Amp-hours
Maximum continuous output current: 100 Amps
Maximum input current: 64 Amps
Maximum array power (24V / 36V / 48V): 3000 / 4500 / 6000 Watts
Maximum PV system voltage: 300 Volts DC
Operating input voltage range: 30 - 290 Volts DC
Peak efficiency: 98.8% at 48VDC
Remote display & controller: MATE3s compatible (purchased separately)
Data logging: 128 days
Enclosure protection rating: IP54
Weight: 18.3 pounds (8.3 kg)
Dimensions (H x W x D): 22.0 x 8.8 x 6.0 inches
Certifications: UL 1741, CSA C22.2 No. 107.1, IEC 62109-1
Additional features: Built-in GFCI, field-replaceable cooling fan

Warranty: 5 years
